Westag & Getalit AG is a leading European manufacturer of wood and plastics products based in Rheda-Wiedenbrück, Germany. Our two divisions Doors/Frames and Surfaces/Elements offer customised solutions from a single source. With effect of 1st January 2014 the Plywood/Formwork sector was integrated into the Surfaces/Elements division and remains at their customers’ disposal as usual. Our flexible, state-of-the-art production and sophisticated logistics enable us to meet our customers’ demand for affordable, high-quality products with short delivery times.

Doors/Frames An important part of the door division’s philosophy is the rapid delivery program AVANTI XXL - the trademark for a wide variety of door & frame products coupled with short-term availability. This fast, flexible and customer-oriented approach has been the basis of Westag & Getalit’s success in recent years. By combining modern design and a high level of technical expertise with advanced IT and sophisticated logistics, Westag & Getalit has achieved their market presence and reputation. . With their standard, and custom-made, range of doors & frames, they seek to cover all the requirements of the customers within the building trade. The customers appreciates the unique variety of surface decors, the wide range of door and frame types to suit both standard installations as well special projects with high-performance doors requiring technical solutions and properties.

Westag & Getalit AG realise production under brands


The product variety of our five brands makes all dreams in terms of interior doors come true. We can help you find the perfect solution for every need. Offices
Public areas
Hotels

• Protective acrylic lacquer
• Wood reproduction or plain coloured decor
• Shockproof door skin

This brand represents a program of „budget doors

• This brand represents a program of „budget doors
• Wood reproduction or plain coloured decor
• Shockproof door skin

This program of doors is manufactured in house in compliance with the highest quality standards

• Melamine resin coating
• Hot pressure surface (HPS) wood structure reproduction
• Craft skin
• Shockproof door skin

High Pressure Laminates acc. to DIN EN438.

• Protective acrylic lacquer
• Wooden framing
• Shockproof door skin

Real wood veneered doors are produced in modern manufacturing lines and offer the excellent usage properties of a natural product.

• Protective lacquer
• Colour finish
• Shockproof door skin

White or colored lacquered series door with a stylish surface, used in private as well as in industrial and commercial building construction.

Rebate options Squere edge Round edge Round edge Segmental edge Door leaf core options Special honeycomb core Semi-solid tubular chipboard core. Tubular chipboard core Solid chipboard core

WOODEN FRAMES Wooden wrap-around architrave frames feature a highly versatile range of applications and satisfy the most discerning demands. They are one of the most sophisticated and versatile frame systems and are available for most standard wall thicknesses with architraves up to 100m wide. Whether modern or classic, choose from our range of types and finishes to suit doors, with either rebated or flush edges, for a perfect solution.

Standard wooden frame with rounded edges
Wooden frame with square edges
Frame type P2
Frame type P1

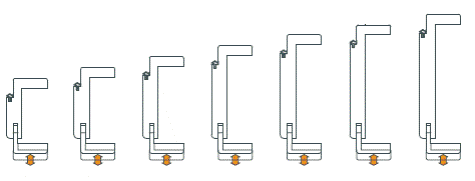

Assessment of the required frame dimensions for wooden wrap-around frames These parameters can help you to clarify required size for order

Size to be ordered (mm)	65	70	80	100	125	145	165	185
Adjustment range from	65	70	80	100	121	141	161	181
up to	78	86	96	116	141	161	181	201

Size to be ordered (mm)	205	225	240	270	290	310	330
Adjustment range from	201	221	236	266	286	306	326
up to	221	241	256	286	306	326	346

min. wall thickness for flush closing types 100mm, min. wall thickness for WestaLife 70mm; max wall thickness 620mm

WESTAG & GETALIT meets all soundproofing and security require,ments of DIN 4109.

Sound transmission class	Soundproofing test result in	used in
SK27	32dB	standard apartment entrance doors, Office doors, up to 2*Hotels
SK32	37dB	Apartment entrance doors, Hotels, Office doors, up to 3*Hotels
SK37	42dB	conference halls, meeting rooms 4* and 5* Hotels

Our fire rated doors adapt perfectly to almost all situations in a project. They can be hardly distinguished from non-rated interior doors by their look. In addition to fire-rated doors, we also offer combined versions for additional smoke protection requirements and sound insulation

Door structure	Function
Fire rated doors (in acc. with DIN and GOST Standards)	Protection against fire for 30 and 60 minutes (acc. to DIN 90 minutes instead of 60)
Smoke protection doors (in acc. with DIN and GOST Standards)	Prevent the penetration of smoke, that contains toxic gases and produces smoke screens.

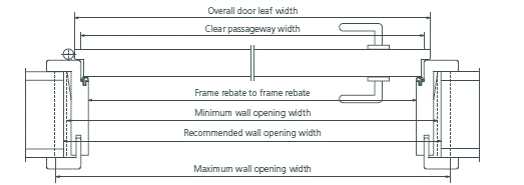

DIMENSIONS DIN standard dimensions for doors and wooden (frames)

Door leaf size (rebated)	net clearance (flush closing)	Minimum wall opening	Recommended wall opening
Width in mm (of wooden frame)
610	569	635	650
735	694	760	775
860	819	885	900
985	944	1010	1025
1110	1069	1135	1150
1235	1194	1260	1275
Height in mm (of wooden frames)
1985	1972	2005	2010
2110	2097	2130	2135

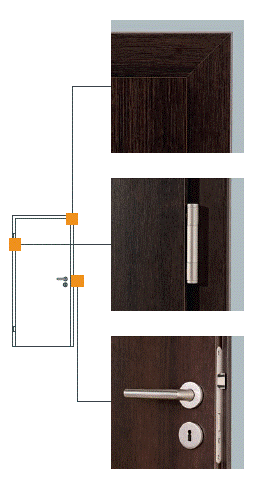

Exclusive optional equipment Our high-grade accessories and special options turn every door into a real eye-catcher. The wide architrave, special nickel-plated hinges in matt finish and the comfort lock with whisper latch do not only improve the look of your door but also convince through their technical features.

ARCHITRAVE The broader architrave with a width of 65mm gives the entire door a stylish look.         HINGES The nickel-plated hinges V 4426 WF with matt finish go perfectly with the stainless steel handle and provide a maintenance-free, high-grade, technically perfect solution         LOCK The comfort lock with whisper latch ensures A smooth, low-noise closing of the door

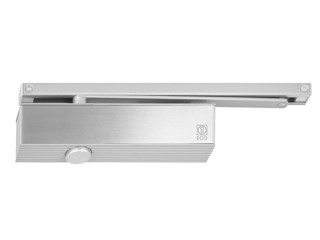

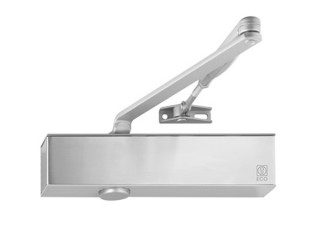

DOOR CLOSERS With sliding track or standard arm

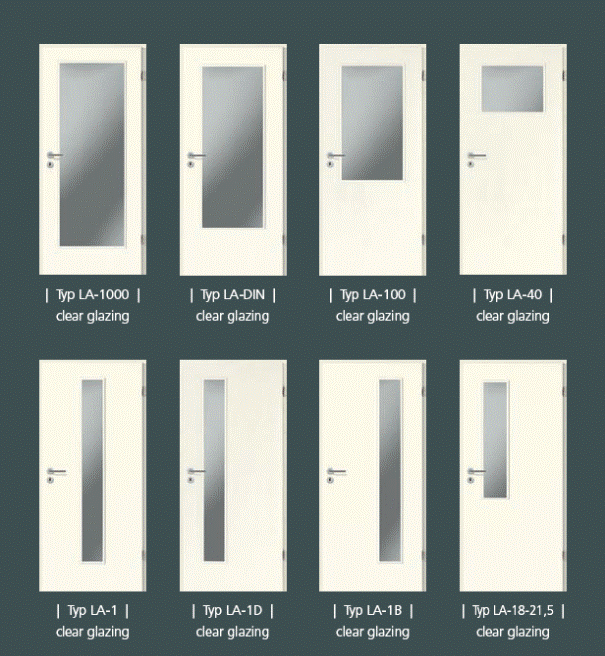

As WBO Door-Consult standard solution supplied with doors-a door closer with stainless steel cover Westag & Getalit doors can also be supplied with hidden door-closer and hidden hinges type Tectus GLAZING TYPES For fire doors please take into consideration the rule «glazing should not exceed 25 % of the door leaf» acc. to certificate!
